Furnace and Electrical Inspection Camera

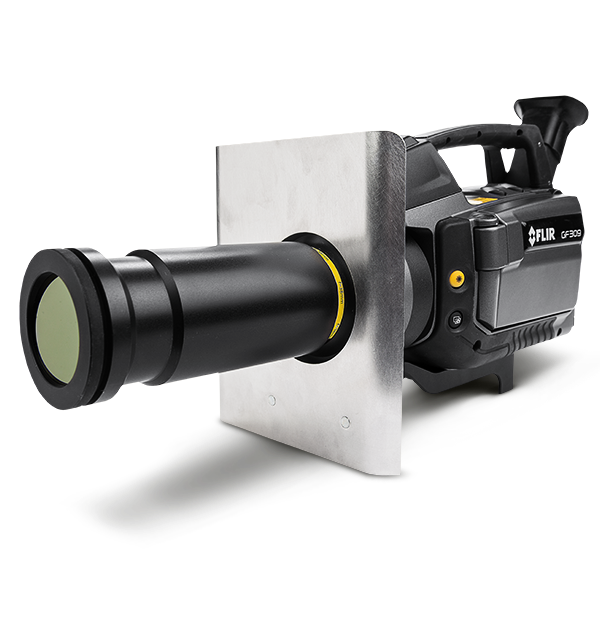

FLIR GF309

Model: GF309, 24° Go to Product Support
product image

The FLIR GF309 is designed for high temperature industrial furnace applications. These infrared cameras are ideal for monitoring all types of furnaces, heaters, and boilers, particularly in the chemical, petrochemical, and utility industries. Custom-built to see through flames, the FLIR GF309 also features a detachable heat shield designed to reflect heat away from the camera and camera operator, providing increased protection.

Sales Contact Contact Sales
  • Faster, Safer Inspections

    By accurately measuring temperature across the entire surface, GF309 helps you inspect faster, work safer, and avoid shutdowns.

  • See More With Extender Lens

    The GF309 extender lens offers better angles when measuring temperatures through a viewport, for improved safety and greater accuracy.

  • Record & Report Easily

    Save images and video from the GF309 to any off-the-shelf video recorder for easy archiving and documentation.

Contact Sales

Want more information on this product?

Call (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Temperature Range
-20°C to 1,500°C (-4°F to 2,732°F)
Accuracy
±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range +100°C (+212°F)
Field of view (FOV)
24° × 18°
Imaging & Optical
Adjustable Viewfinder
Tiltable OLED, 800 × 480 pixels
Color LCD
4.3"; 800 × 480 Pixels
Detector Type
Cooled InSb
Field of view (FOV)
24° × 18°
Focus
Auto & Manual
High Temp Option
Yes
Laser Spot
Yes
Minimum Focus Distance
0.3 m (1.0 ft.)
MPEG Video Recording
Yes
Radiometric JPG
Yes
Radiometric Video [15Hz]
Yes
Resolution
320 × 240
Spectral Response
3.8 – 4.05 µm
Total Pixels
76800.0
Video Camera wLamp
3.2 MP
Zoom
1 – 8× continuous digital
Measurement & Analysis
Accuracy
±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range +100°C (+212°F)
Area Box
5 (min./max./avg.)
Delta T
Yes
Profile
1 live line (horiz. or vert.)
Spot Meter
10.0
Temperature Range
-20°C to 1,500°C (-4°F to 2,732°F)
Thermal Sensitivity
<15 mK @ +30°C (+86°F)
General
GPS [compass]
Yes
Packaging Size
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
Related Content
Accessories
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
