Advanced Thermal Imaging Camera

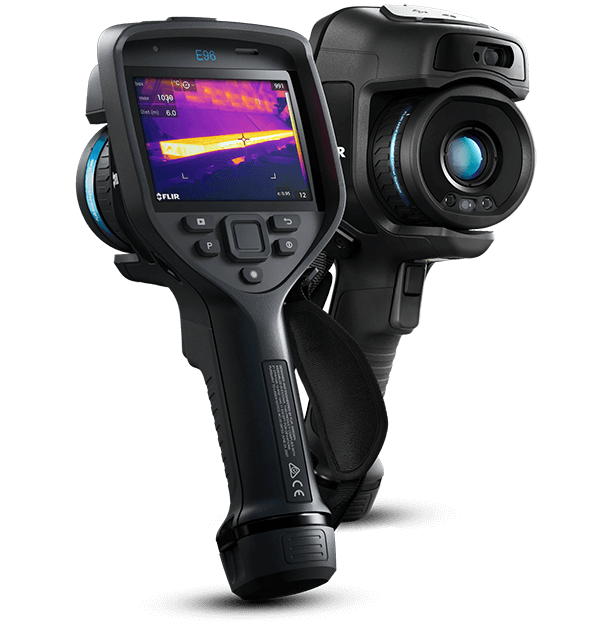

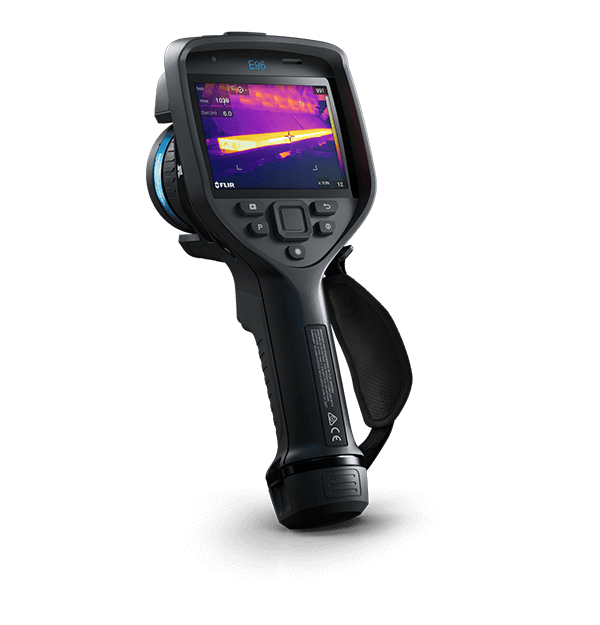

FLIR E96

Model: FLIR E96 Dual FOV 14° + 24° Go to Product Support
product image

<b>E96 + FlexView DFOV Bundle Promotion! Details below on select camera savings plus bundle value. </b><br><br>The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. The FLIR E96 offers complete coverage of near and distant targets through a range of lens options. Pair the E96 with a FLIR FlexView™ dual field-of-view lens to instantly switch from wide-area to telephoto scanning in one push of a button. The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.

$20,015.00
$17,255.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Enhanced Resolution, Faster Inspections

  • Outstanding Thermal Imagery

    The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.

  • Intelligent AutoCal™ Optics

    Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.

  • Streamlined Reporting

    Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. (*Optional accessory software)

FLIR Ignite&trade; for Exx-Series

FLIR Ignite™ for Exx-Series

Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.

Don't Have Ignite?

FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.

Optimize Your Workflow at the Optimal Price!

For a limited time, FLIR is offering select Exx-Series thermal cameras—paired with a FlexView® Dual Field of View lens—at a promotional price with bundled value:

phh promo products_apac.png thermal studio logo.png FLIR-Academy-logo-Black.png
Camera + DFOV lens  FLIR Thermal Studio Pro 12-month subscription Thermal Studio Suite Fundamentals online training

SEE THE SAVINGS




thermal-studio-pro-Exseries.pngProfessional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.

The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.




maintenance page_repair.jpg

flir care logo.png     flir protect logo.png

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Learn More

ITC_Logo_Primary.pngBecome a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

  • How to adjust image parameters and optimize thermal contrast
  • How to create batch functions for image processing
  • How to design a new report template

Thermal Studio Training



Contact Sales

Want more information on this product?

Call +1-866-477-3687 (toll free) to speak with a knowledgeable specialist.

Specifications
IR Resolution
640 × 480 pixels
Thermal Sensitivity/NETD
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Digital Camera
5 MP, with built-in LED photo/video lamp
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media
Removable SD card
Imaging & Optical
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch
Uncooled microbolometer, 12 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Zoom
1-8× continuous
Field of View
24° × 18°, 14° × 10°
f-number
24°: 1.3
14°: 1.3
Focal Length
24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)
Focus
Continuous LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency
30 Hz
IR Resolution
640 × 480 pixels
Lens Identification
Automatic
Minimum Focus Distance
24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)
Minimum Focus Distance with MSX
24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Resizable and movable
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Yes, over UVC
Spatial resolution (IFOV)
24°: 0.67 mrad/pixel
14°: 0.38 mrad/pixel
Spectral Range
7.5-14 µm
Thermal Sensitivity/NETD
<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)
UltraMax
Yes
Viewfinder
No
Measurement & Analysis
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Measurement Presets
No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range
-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
Spot Meter
3 ea. in live mode
User Interface
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text
Predefined list or touchscreen keyboard
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
Battery operating time
>2.5 hours at 25°C (68°F) and typical use
Battery type
Rechargeable Li-ion battery
Environmental & Certifications
Operating Temperature Range
-15 to 50°C (5 to 122°F)
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route
Enabled in camera
Laser Pointer
Yes
Packaging
Infrared camera with lens, s2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
